Public 类型 | Public 成员函数 | 所有成员列表
ara::diag::SecurityAccess类 参考abstract
CommonAPIs

DiagnosticSecurityAccessInterface. 更多...

#include <security_access.h>

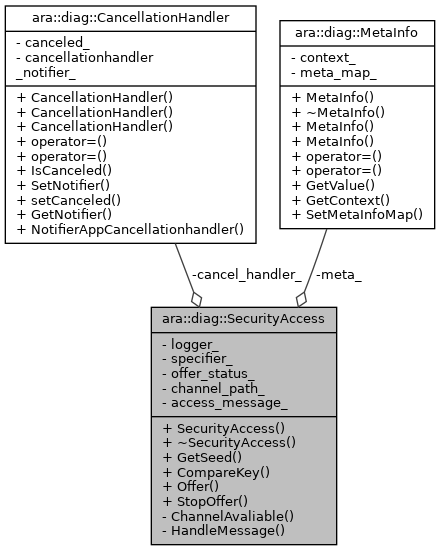

ara::diag::SecurityAccess 的协作图:
Collaboration graph

Public 类型

enum  KeyCompareResultType { KeyCompareResultType::kKeyValid = 0x00, KeyCompareResultType::kKeyInvalid = 0x01 }
 Represents the status of the key compare. 更多...


Public 成员函数

 SecurityAccess (const ara::core::InstanceSpecifier &specifier, ReentrancyType reentrancyType)
 Constructor of SecurityAccess. 更多...

virtual ~SecurityAccess () noexcept
 Destructor of SecurityAccess. 更多...

virtual ara::core::Future< ara::core::Span< std::uint8_t > > GetSeed (ara::core::Span< std::uint8_t > securityAccessDataRecord, MetaInfo &metaInfo, CancellationHandler &cancellationHandler)=0
 Called for any request messsage. 更多...

virtual ara::core::Future< KeyCompareResultType > CompareKey (ara::core::Span< std::uint8_t > key, MetaInfo &metaInfo, CancellationHandler &cancellationHandler)=0
 This method is called, when a diagnostic request has been finished, to notify about the outcome. 更多...

ara::core::Result< void > Offer ()
 This Offer will enable the DM to forward request messages to this handler. 更多...

void StopOffer ()
 This StopOffer will disable the forwarding of request messages from DM. 更多...


详细描述

DiagnosticSecurityAccessInterface.

Swsid
SWS_DM_00761
符合标准
yes
非标原因
N/A
种类
class
符号
SecurityAccess
范围
namespace ara::diag
基类
N/A
分类
ara
头文件
ara/diag/security_access.h"
注解
The SecurityAccess service is used to represent the result of the Key value comparison.
模板参数
N/A

在文件 第 行定义.

成员枚举类型说明

◆ KeyCompareResultType

enum ara::diag::SecurityAccess::KeyCompareResultType
strong

Represents the status of the key compare.

Swsid
SWS_DM_00760
符合标准
yes
非标原因
N/A
种类
enumeration
符号
KeyCompareResultType
范围
class ara::diag::SecurityAccess
基本类型
N/A
取值
N/A
分类
ara
头文件
ara/diag/security_access.h
注解
N/A
枚举值
kKeyValid

Key is valid.

kKeyInvalid

Key is invalid.

在文件 第 行定义.

构造及析构函数说明

◆ SecurityAccess()

ara::diag::SecurityAccess::SecurityAccess ( const ara::core::InstanceSpecifier &  specifier,
ReentrancyType  reentrancyType
)
explicit

Constructor of SecurityAccess.

模板参数
N/A
参数
[in]specifierInstanceSpecifier to an PortPrototype of an DiagnosticSecurityAccessInterface
[in]reentrancyTypespecifies if interface is callable fully- or non-reentrant
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00762
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/security_access.h
异常安全
N/A
分类
ara

在文件 第 行定义.

◆ ~SecurityAccess()

ara::diag::SecurityAccess::~SecurityAccess ( )
virtualnoexcept

Destructor of SecurityAccess.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00763
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/security_access.h
异常安全
noexcept
分类
ara

在文件 第 行定义.

成员函数说明

◆ CompareKey()

virtual ara::core::Future<KeyCompareResultType> ara::diag::SecurityAccess::CompareKey ( ara::core::Span< std::uint8_t >  key,
MetaInfo &  metaInfo,
CancellationHandler &  cancellationHandler
)
pure virtual

This method is called, when a diagnostic request has been finished, to notify about the outcome.

模板参数
N/A
参数
[in]keyThe key to be validated
[in]metaInfoMetaInfo of the request.
[in]cancellationHandlerSet if the current conversation is canceled.
[out]N/A
[in,out]N/A
返回
ara::core::Future< KeyCompareResultType >
注解
N/A
异常
N/A
Swsid
SWS_DM_00765
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSubfunctionNotSupported
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kIncorrectMessageLengthOrInvalidFormat
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kConditionsNotCorrect
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestSequenceError
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestOutOfRange
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kInvalidKey
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kExceedNumberOfAttempts
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequiredTimeDelayNotExpired
头文件
ara/diag/security_access.h
异常安全
N/A
分类
ara

◆ GetSeed()

virtual ara::core::Future<ara::core::Span<std::uint8_t> > ara::diag::SecurityAccess::GetSeed ( ara::core::Span< std::uint8_t >  securityAccessDataRecord,
MetaInfo &  metaInfo,
CancellationHandler &  cancellationHandler
)
pure virtual

Called for any request messsage.

模板参数
N/A
参数
[in]securityAccessDataRecordSecurity Access payload
[in]metaInfoMetaInfo of the request.
[in]cancellationHandlerSet if the current conversation is canceled.
[out]N/A
[in,out]N/A
返回
ara::core::Future<ara::core::Span<std::uint8_t> >
注解
N/A
异常
N/A
Swsid
SWS_DM_00764
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSubfunctionNotSupported
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kIncorrectMessageLengthOrInvalidFormat
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kConditionsNotCorrect
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestSequenceError
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestOutOfRange
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kInvalidKey
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kExceedNumberOfAttempts
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequiredTimeDelayNotExpired
头文件
ara/diag/security_access.h
异常安全
N/A
分类
ara

◆ Offer()

ara::core::Result< void > ara::diag::SecurityAccess::Offer ( )

This Offer will enable the DM to forward request messages to this handler.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
ara::core::Result<void>
注解
N/A
异常
N/A
Swsid
SWS_DM_00766
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagErrorDomain::DiagReportingErrc::kGenericError
错误
DiagErrorDomain::DiagOfferErrc::kAlreadyOffered
头文件
ara/diag/security_access.h
异常安全
N/A
分类
ara

在文件 第 行定义.

引用了 ara::diag::kAlreadyOffered.

◆ StopOffer()

void ara::diag::SecurityAccess::StopOffer ( )

This StopOffer will disable the forwarding of request messages from DM.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00767
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/security_access.h
异常安全
N/A
分类
ara

在文件 第 行定义.
