ara::diag::Monitor类 参考

Class to implement operations on diagnostic Monitor interface. 更多...

#include <monitor.h>

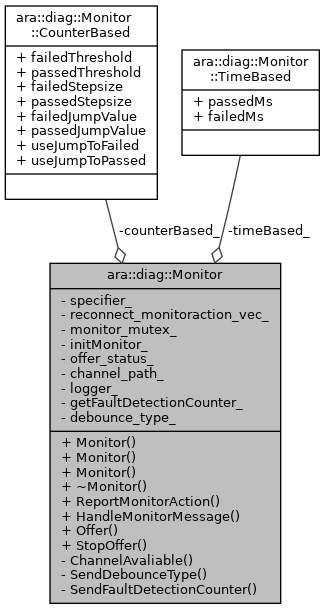

ara::diag::Monitor 的协作图:

类
struct	CounterBased
	Represents the parameters for counter-based debouncing. 更多...
struct	TimeBased
	Represents the parameters for time-based debouncing. 更多...

Public 成员函数
	Monitor (const ara::core::InstanceSpecifier &specifier, std::function< void(InitMonitorReason)> initMonitor, std::function< std::int8_t()> getFaultDetectionCounter)
	Monitor constructor for Monitors with Monitor-internal debouncing. 更多...
	Monitor (const ara::core::InstanceSpecifier &specifier, std::function< void(InitMonitorReason)> initMonitor, CounterBased defaultValues)
	Monitor constructor for Monitors with counter-based debouncing. 更多...
	Monitor (const ara::core::InstanceSpecifier &specifier, std::function< void(InitMonitorReason)> initMonitor, TimeBased defaultValues)
	Monitor constructor for Monitors with time-based debouncing. 更多...
void	ReportMonitorAction (MonitorAction action)
	Function to report the status information being relevant for error monitoring paths. 更多...
ara::core::Result< void >	Offer ()
	This Offer will enable the DM to forward request messages to this handler. 更多...
void	StopOffer ()
	This StopOffer will disable the forwarding of request messages from DM. 更多...

详细描述

Class to implement operations on diagnostic Monitor interface.

Swsid

SWS_DM_00542

符合标准

yes

非标原因

N/A

种类

class

符号

ara::diag::Monitor

范围

namespace ara::diag

基类

N/A

分类

ara

头文件

ara/diag/monitor.h

注解

Class to implement operations on diagnostic Monitor interface.

模板参数

N/A

在文件 第 行定义.

构造及析构函数说明

Monitor() [1/3]

ara::diag::Monitor::Monitor	(	const ara::core::InstanceSpecifier &	specifier,
		std::function< void(InitMonitorReason)>	initMonitor,
		std::function< std::int8_t()>	getFaultDetectionCounter
	)

Monitor constructor for Monitors with Monitor-internal debouncing.

模板参数

N/A

参数

[in]	specifier	InstanceSpecifier to an PortPrototype of an DiagnosticMonitorInterface.
[in]	initMonitor	Possibility to register an InitMonitor callback.
[in]	getFaultDetectionCounter	Possibility to register a function to get the current FDC for this event.
[out]	N/A
[in,out]	N/A

返回

N/A

注解

N/A

异常

N/A

Swsid

SWS_DM_00548

符合标准

yes

非标原因

N/A

种类

function

可见

public

线程安全

N/A

Fireandforget

N/A

错误

N/A

头文件

ara/diag/monitor.h

异常安全

N/A

分类

ara

在文件 第 行定义.

Monitor() [2/3]

ara::diag::Monitor::Monitor	(	const ara::core::InstanceSpecifier &	specifier,
		std::function< void(InitMonitorReason)>	initMonitor,
		CounterBased	defaultValues
	)

Monitor constructor for Monitors with counter-based debouncing.

模板参数

N/A

参数

[in]	specifier	InstanceSpecifier to an PortPrototype of an DiagnosticMonitorInterface.
[in]	initMonitor	Possibility to register an InitMonitor callback.
[in]	defaultValues	Default values for CounterBased debouncing.
[out]	N/A
[in,out]	N/A

返回

N/A

注解

N/A

异常

N/A

Swsid

SWS_DM_00549

符合标准

yes

非标原因

N/A

种类

function

可见

public

线程安全

N/A

Fireandforget

N/A

错误

N/A

头文件

ara/diag/monitor.h

异常安全

N/A

分类

ara

在文件 第 行定义.

Monitor() [3/3]

ara::diag::Monitor::Monitor	(	const ara::core::InstanceSpecifier &	specifier,
		std::function< void(InitMonitorReason)>	initMonitor,
		TimeBased	defaultValues
	)

Monitor constructor for Monitors with time-based debouncing.

模板参数

N/A

参数

[in]	specifier	InstanceSpecifier to an PortPrototype of an DiagnosticMonitorInterface.
[in]	initMonitor	Possibility to register an InitMonitor callback.
[in]	defaultValues	Default values for TimeBased debouncing.
[out]	N/A
[in,out]	N/A

返回

N/A

注解

N/A

异常

N/A

Swsid

SWS_DM_00550

符合标准

yes

非标原因

N/A

种类

function

可见

public

线程安全

N/A

Fireandforget

N/A

错误

N/A

头文件

ara/diag/monitor.h

异常安全

N/A

分类

ara

在文件 第 行定义.

成员函数说明

Offer()

ara::core::Result< void > ara::diag::Monitor::Offer

(

)

This Offer will enable the DM to forward request messages to this handler.

模板参数

N/A

参数

[in]	N/A
[out]	ara::core::Result<void>
[in,out]	N/A

返回

ara::core::Result<void>

注解

N/A

异常

N/A

Swsid

SWS_DM_01088

符合标准

yes

非标原因

N/A

种类

function

可见

public

线程安全

N/A

Fireandforget

N/A

错误

DiagErrorDomain::DiagOfferErrc::kAlreadyOffered This service was already offered.

错误

DiagErrorDomain::DiagReportingErrc::kGenericError Connection to DM lost

头文件

ara/diag/monitor.h

异常安全

N/A

分类

ara

在文件 第 行定义.

引用了 ara::diag::kAlreadyOffered.

ReportMonitorAction()

void ara::diag::Monitor::ReportMonitorAction

(

MonitorAction

action

)

Function to report the status information being relevant for error monitoring paths.

模板参数

N/A

参数

[in]	action	Contains either the last (un-)qualified test result of the diagnostic monitor or commands to control the debouncing or to force a prestorage.
[out]	N/A
[in,out]	N/A

返回

N/A

注解

N/A

异常

N/A

Swsid

SWS_DM_00543

符合标准

yes

非标原因

N/A

种类

function

可见

public

线程安全

N/A

Fireandforget

N/A

错误

N/A

头文件

ara/diag/monitor.h

异常安全

N/A

分类

ara

在文件 第 行定义.

StopOffer()

void ara::diag::Monitor::StopOffer

(

)

This StopOffer will disable the forwarding of request messages from DM.

模板参数

N/A

参数

[in]	N/A
[out]	N/A
[in,out]	N/A

返回

N/A

注解

N/A

异常

N/A

Swsid

SWS_DM_01089

符合标准

yes

非标原因

N/A

种类

function

可见

public

线程安全

N/A

Fireandforget

N/A

错误

N/A

头文件

ara/diag/monitor.h

异常安全

N/A

分类

ara

在文件 第 行定义.
