类 | Public 成员函数 | 所有成员列表
ara::diag::GenericDataIdentifier类 参考abstract
CommonAPIs

Generic DataIdentifier interface. 更多...

#include <generic_data_identifier.h>

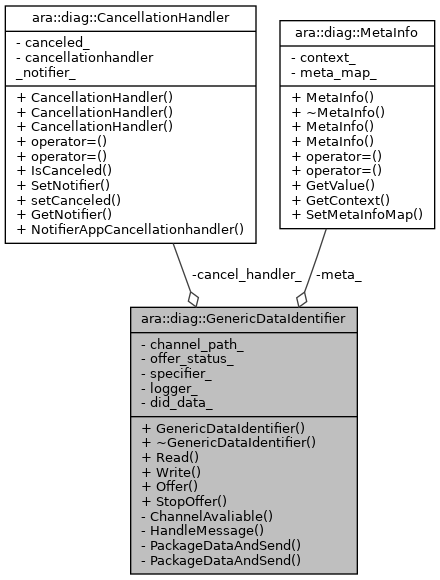

ara::diag::GenericDataIdentifier 的协作图:
Collaboration graph

类

struct  OperationOutput
 Response data of positive respone message. 更多...


Public 成员函数

 GenericDataIdentifier (const ara::core::InstanceSpecifier &specifier, DataIdentifierReentrancyType reentrancyType)
 Class for an GenericDataIdentifier. 更多...

virtual ~GenericDataIdentifier () noexcept
 Destructor of class GenericDataIdentifier. 更多...

virtual ara::core::Future< OperationOutput > Read (std::uint16_t dataIdentifier, MetaInfo &metaInfo, CancellationHandler &cancellationHandler)=0
 Called for ReadDataByIdentifier request for this DiagnosticDataIdentifier. 更多...

virtual ara::core::Future< void > Write (std::uint16_t dataIdentifier, ara::core::Span< std::uint8_t > requestData, MetaInfo &metaInfo, CancellationHandler &cancellationHandler)=0
 Called for WriteDataByIdentifier request for this DiagnosticDataIdentifier. 更多...

ara::core::Result< void > Offer ()
 This Offer will enable the DM to forward request messages to this handler. 更多...

void StopOffer ()
 This StopOffer will disable the forwarding of request messages from DM. 更多...


详细描述

Generic DataIdentifier interface.

Swsid
SWS_DM_00607
符合标准
yes
非标原因
N/A
种类
class
符号
GenericDataIdentifier
范围
namespace ara::diag
基类
N/A
分类
ara
头文件
ara/diag/generic_data_identifier.h
注解
GenericDataIdentifier service for generic DID interface.
模板参数
N/A

在文件 第 行定义.

构造及析构函数说明

◆ GenericDataIdentifier()

ara::diag::GenericDataIdentifier::GenericDataIdentifier ( const ara::core::InstanceSpecifier &  specifier,
DataIdentifierReentrancyType  reentrancyType
)
explicit

Class for an GenericDataIdentifier.

模板参数
N/A
参数
[in]specifierInstanceSpecifier to an PortPrototype of an DiagnosticDataIdentifierGenericInterface
[in]reentrancyTypespecifies if interface is callable fully- or non-reentrant for reads, writes or both
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00634
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/generic_data_identifier.h
异常安全
N/A
分类
ara

在文件 第 行定义.

◆ ~GenericDataIdentifier()

ara::diag::GenericDataIdentifier::~GenericDataIdentifier ( )
virtualnoexcept

Destructor of class GenericDataIdentifier.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00635
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/generic_data_identifier.h
异常安全
noexcept
分类
ara

在文件 第 行定义.

成员函数说明

◆ Offer()

ara::core::Result< void > ara::diag::GenericDataIdentifier::Offer ( )

This Offer will enable the DM to forward request messages to this handler.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
ara::core::Result<void>
注解
N/A
异常
N/A
Swsid
SWS_DM_00638
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagErrorDomain::DiagReportingErrc::kGenericError
错误
DiagErrorDomain::DiagOfferErrc::kAlreadyOffered
头文件
ara/diag/generic_data_identifier.h
异常安全
N/A
分类
ara

在文件 第 行定义.

引用了 ara::diag::kAlreadyOffered.

◆ Read()

virtual ara::core::Future<OperationOutput> ara::diag::GenericDataIdentifier::Read ( std::uint16_t  dataIdentifier,
MetaInfo &  metaInfo,
CancellationHandler &  cancellationHandler
)
pure virtual

Called for ReadDataByIdentifier request for this DiagnosticDataIdentifier.

模板参数
N/A
参数
[in]dataIdentifierthe corresponding DataIdentifier
[in]metaInfocontains additional meta information
[in]cancellationHandlerinforms if the current conversation is canceled
[out]N/A
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
SWS_DM_00636
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kGeneralReject
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kServiceNotSupported
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSubfunctionNotSupported
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kIncorrectMessageLengthOrInvalidFormat
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kResponseTooLong
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kBusyRepeatRequest
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kConditionsNotCorrect
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestSequenceError
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kNoResponseFromSubnetComponent
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kFailurePreventsExecutionOfRequestedAction
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestOutOfRange
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSecurityAccessDenied
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kInvalidKey
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kExceedNumberOfAttempts
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequiredTimeDelayNotExpired
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kUploadDownloadNotAccepted
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTransferDataSuspended
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kGeneralProgrammingFailure
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kWrongBlockSequenceCounter
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSubFunctionNotSupportedInActiveSession
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kServiceNotSupportedInActiveSession
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRpmTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRpmTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kEngineIsRunning
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kEngineIsNotRunning
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kEngineRunTimeTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTemperatureTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTemperatureTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVehicleSpeedTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVehicleSpeedTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kThrottlePedalTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kThrottlePedalTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTransmissionRangeNotInNeutral
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTransmissionRangeNotInGear
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kBrakeSwitchNotClosed
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kShifterLeverNotInPark
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTorqueConverterClutchLocked
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVoltageTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVoltageTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kResourceTemporarilyNotAvailable
头文件
ara/diag/generic_data_identifier.h
异常安全
N/A
分类
ara

◆ StopOffer()

void ara::diag::GenericDataIdentifier::StopOffer ( )

This StopOffer will disable the forwarding of request messages from DM.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00639
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/generic_data_identifier.h
异常安全
N/A
分类
ara

在文件 第 行定义.

◆ Write()

virtual ara::core::Future<void> ara::diag::GenericDataIdentifier::Write ( std::uint16_t  dataIdentifier,
ara::core::Span< std::uint8_t >  requestData,
MetaInfo &  metaInfo,
CancellationHandler &  cancellationHandler
)
pure virtual

Called for WriteDataByIdentifier request for this DiagnosticDataIdentifier.

模板参数
N/A
参数
[in]dataIdentifierthe corresponding DataIdentifier
[in]requestDataContent of request message (without DataIdentifier)
[in]metaInfocontains additional meta information
[in]cancellationHandlerinforms if the current conversation is canceled
[out]N/A
[in,out]N/A
返回
ara::core::Future<void>
注解
N/A
异常
N/A
Swsid
SWS_DM_00637
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kGeneralReject
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kServiceNotSupported
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSubfunctionNotSupported
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kIncorrectMessageLengthOrInvalidFormat
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kResponseTooLong
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kBusyRepeatRequest
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kConditionsNotCorrect
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestSequenceError
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kNoResponseFromSubnetComponent
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kFailurePreventsExecutionOfRequestedAction
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestOutOfRange
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSecurityAccessDenied
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kInvalidKey
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kExceedNumberOfAttempts
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequiredTimeDelayNotExpired
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kUploadDownloadNotAccepted
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTransferDataSuspended
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kGeneralProgrammingFailure
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kWrongBlockSequenceCounter
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSubFunctionNotSupportedInActiveSession
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kServiceNotSupportedInActiveSession
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRpmTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRpmTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kEngineIsRunning
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kEngineIsNotRunning
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kEngineRunTimeTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTemperatureTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTemperatureTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVehicleSpeedTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVehicleSpeedTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kThrottlePedalTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kThrottlePedalTooLow
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTransmissionRangeNotInNeutral
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTransmissionRangeNotInGear
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kBrakeSwitchNotClosed
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kShifterLeverNotInPark
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTorqueConverterClutchLocked
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVoltageTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVoltageTooLow
头文件
ara/diag/generic_data_identifier.h
异常安全
N/A
分类
ara
