类 | Public 成员函数 | 所有成员列表
ara::diag::DownloadService类 参考abstract
CommonAPIs

Download service interface. 更多...

#include <download.h>

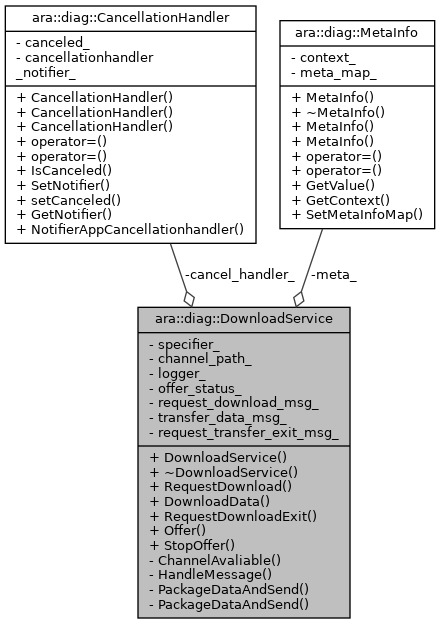

ara::diag::DownloadService 的协作图:
Collaboration graph

类

struct  OperationOutput
 Response data of positive respone message. 更多...


Public 成员函数

 DownloadService (const ara::core::InstanceSpecifier &specifier, ReentrancyType reentrancyType)
 Class for an DownloadService. 更多...

virtual ~DownloadService () noexcept
 Destructor of class DownloadService. 更多...

virtual ara::core::Future< void > RequestDownload (std::uint8_t dataFormatIdentifier, std::uint8_t addressAndLengthFormatIdentifier, ara::core::Span< std::uint8_t > memoryAddressAndSize, MetaInfo &metaInfo, CancellationHandler &cancellationHandler)=0
 Called for RequestDownload. 更多...

virtual ara::core::Future< OperationOutput > DownloadData (ara::core::Span< std::uint8_t > transferRequestParameterRecord, MetaInfo &metaInfo, CancellationHandler &cancellationHandler)=0
 Called for TransferData following a previous RequestDownload. 更多...

virtual ara::core::Future< OperationOutput > RequestDownloadExit (ara::core::Span< std::uint8_t > transferRequestParameterRecord, MetaInfo &metaInfo, CancellationHandler &cancellationHandler)=0
 Called for RequestTransferExit. 更多...

ara::core::Result< void > Offer ()
 This Offer will enable the DM to forward request messages to this handler. 更多...

void StopOffer ()
 This StopOffer will disable the forwarding of request messages from DM. 更多...


详细描述

Download service interface.

Swsid
SWS_DM_00784
符合标准
yes
非标原因
N/A
种类
class
符号
DownloadService
范围
namespace ara::diag
基类
N/A
分类
ara
头文件
ara/diag/download.h
注解
DownloadService service is used for burning service.
模板参数
N/A

在文件 第 行定义.

构造及析构函数说明

◆ DownloadService()

ara::diag::DownloadService::DownloadService ( const ara::core::InstanceSpecifier &  specifier,
ReentrancyType  reentrancyType
)
explicit

Class for an DownloadService.

模板参数
N/A
参数
[in]specifierInstanceSpecifier to an PortPrototype of an DownloadServiceInterface
[in]reentrancyTypespecifies if interface is callable fully- or non-reentrant
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00787
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/download.h
异常安全
N/A
分类
ara

在文件 第 行定义.

◆ ~DownloadService()

ara::diag::DownloadService::~DownloadService ( )
virtualnoexcept

Destructor of class DownloadService.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00788
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/download.h
异常安全
noexcept
分类
ara

在文件 第 行定义.

成员函数说明

◆ DownloadData()

virtual ara::core::Future<OperationOutput> ara::diag::DownloadService::DownloadData ( ara::core::Span< std::uint8_t >  transferRequestParameterRecord,
MetaInfo &  metaInfo,
CancellationHandler &  cancellationHandler
)
pure virtual

Called for TransferData following a previous RequestDownload.

模板参数
N/A
参数
[in]transferRequestParameterRecorddata to be transferred (copied/downloaded to the ECU/server).
[in]metaInfocontains additional meta information.
[in]cancellationHandlerinforms if the current conversation is canceled.
[out]N/A
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
SWS_DM_00790
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kIncorrectMessageLengthOrInvalidFormat
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestSequenceError
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestOutOfRange
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kTransferDataSuspended
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kGeneralProgrammingFailure
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kWrongBlockSequenceCounter
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVoltageTooHigh
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kVoltageTooLow
头文件
ara/diag/download.h
异常安全
N/A
分类
ara

◆ Offer()

ara::core::Result< void > ara::diag::DownloadService::Offer ( )

This Offer will enable the DM to forward request messages to this handler.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
ara::core::Result<void>
注解
N/A
异常
N/A
Swsid
SWS_DM_00792
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagErrorDomain::DiagReportingErrc::kGenericError
错误
DiagErrorDomain::DiagOfferErrc::kAlreadyOffered
头文件
ara/diag/download.h
异常安全
N/A
分类
ara

在文件 第 行定义.

引用了 ara::diag::kAlreadyOffered.

◆ RequestDownload()

virtual ara::core::Future<void> ara::diag::DownloadService::RequestDownload ( std::uint8_t  dataFormatIdentifier,
std::uint8_t  addressAndLengthFormatIdentifier,
ara::core::Span< std::uint8_t >  memoryAddressAndSize,
MetaInfo &  metaInfo,
CancellationHandler &  cancellationHandler
)
pure virtual

Called for RequestDownload.

模板参数
N/A
参数
[in]dataFormatIdentifierUDS dataFormat Identifier.
[in]addressAndLengthFormatIdentifierUDS addressAndLengthFormatIdentifier.
[in]memoryAddressAndSizememoryAddress and memorySize part of the request.
[in]metaInfocontains additional meta information.
[in]cancellationHandlerinforms if the current conversation is canceled.
[out]N/A
[in,out]N/A
返回
ara::core::Future<void>
注解
N/A
异常
N/A
Swsid
SWS_DM_00789
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kIncorrectMessageLengthOrInvalidFormat
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kConditionsNotCorrect
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kRequestOutOfRange
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kSecurityAccessDenied
错误
DiagUdsNrcErrorDomain::DiagUdsNrcErrc::kUploadDownloadNotAccepted
头文件
ara/diag/download.h
异常安全
N/A
分类
ara

◆ RequestDownloadExit()

virtual ara::core::Future<OperationOutput> ara::diag::DownloadService::RequestDownloadExit ( ara::core::Span< std::uint8_t >  transferRequestParameterRecord,
MetaInfo &  metaInfo,
CancellationHandler &  cancellationHandler
)
pure virtual

Called for RequestTransferExit.

模板参数
N/A
参数
[in]transferRequestParameterRecordThis parameter record contains parameter(s), which are required by the server to support the transfer of data.Format and length of this parameter(s) are vehicle manufacturer specific.
[in]metaInfocontains additional meta information.
[in]cancellationHandlerinforms if the current conversation is canceled.
[out]N/A
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
SWS_DM_00791
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
Any applicable NegativeResponseValue according to DiagUdsNrcErrc
头文件
ara/diag/download.h
异常安全
N/A
分类
ara

◆ StopOffer()

void ara::diag::DownloadService::StopOffer ( )

This StopOffer will disable the forwarding of request messages from DM.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
SWS_DM_00793
符合标准
yes
非标原因
N/A
种类
function
可见
public
线程安全
no
Fireandforget
no
错误
N/A
头文件
ara/diag/download.h
异常安全
N/A
分类
ara

在文件 第 行定义.
