Public 成员函数 | 所有成员列表
ara::diag::Authentication类 参考abstract
CommonAPIs

Simple interface class for authentication request objects. 更多...

#include <authentication.h>

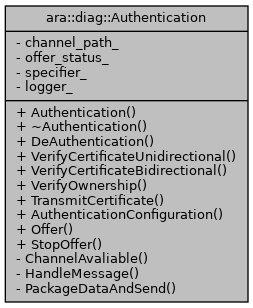

ara::diag::Authentication 的协作图:
Collaboration graph

Public 成员函数

 Authentication (const ara::core::InstanceSpecifier &specifier)
 Constructor. 更多...

virtual ~Authentication ()
 destructor. 更多...

virtual ara::core::Future< OperationOutput > DeAuthentication ()=0
 DeAuthentication succeeds, the server is secured again. 更多...

virtual ara::core::Future< OperationOutput > VerifyCertificateUnidirectional (uint8_t CommunicationConfiguration, ByteSpan ClientCertificate, ByteSpan ClientChallenge)=0
 Authenticate by validating certificates. 更多...

virtual ara::core::Future< OperationOutput > VerifyCertificateBidirectional (uint8_t CommunicationConfiguration, ByteSpan ClientCertificate, ByteSpan ClientChallenge)=0
 Initiate authentication by validating the certificate and generating proof of ownership from the server. 更多...

virtual ara::core::Future< OperationOutput > VerifyOwnership (ByteSpan ClientPOWN, ByteSpan ClientEphemeralPublicKey)=0
 Initiate authentication by validating the certificate. 更多...

virtual ara::core::Future< OperationOutput > TransmitCertificate (uint16_t CertificateEvaluationId, ByteSpan CertificateData)=0
 This SubFunction parameter transmits the certificate independently or after a previous authentication. 更多...

virtual ara::core::Future< OperationOutput > AuthenticationConfiguration ()=0
 Authentication configuration provided by the server. 更多...

ara::core::Result< void > Offer ()
 Provides a service that enables the DM to forward the diagnostic service request to the diagnostic application for processing. 更多...

void StopOffer ()
 StopOffer prohibits forwarding of messages delivered from DMs. 更多...


详细描述

Simple interface class for authentication request objects.

Swsid
N/A
符合标准
No
非标原因
custom interface
种类
class
符号
ara::diag::Authentication
范围
namespace ara::diag
基类
N/A
分类
ara
头文件
ara/diag/authentication.h
注解
Authentication service is used for authentication.
模板参数
N/A

在文件 第 行定义.

构造及析构函数说明

◆ Authentication()

ara::diag::Authentication::Authentication ( const ara::core::InstanceSpecifier &  specifier)
explicit

Constructor.

模板参数
N/A
参数
[in]specifierAn instance designator of PortPrototype. InstanceSpecifier is an alias for std::string type.
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

在文件 第 行定义.

◆ ~Authentication()

ara::diag::Authentication::~Authentication ( )
virtual

destructor.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

在文件 第 行定义.

成员函数说明

◆ AuthenticationConfiguration()

virtual ara::core::Future<OperationOutput> ara::diag::Authentication::AuthenticationConfiguration ( )
pure virtual

Authentication configuration provided by the server.

模板参数
N/A
参数
[in]N/A
[out]ara::core::Future<OperationOutput>
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

◆ DeAuthentication()

virtual ara::core::Future<OperationOutput> ara::diag::Authentication::DeAuthentication ( )
pure virtual

DeAuthentication succeeds, the server is secured again.

模板参数
N/A
参数
[in]N/A
[out]ara::core::Future<OperationOutput>
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

◆ Offer()

ara::core::Result< void > ara::diag::Authentication::Offer ( )

Provides a service that enables the DM to forward the diagnostic service request to the diagnostic application for processing.

模板参数
N/A
参数
[in]N/A
[out]int
[in,out]N/A
返回
int
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

在文件 第 行定义.

引用了 ara::diag::kAlreadyOffered.

◆ StopOffer()

void ara::diag::Authentication::StopOffer ( )

StopOffer prohibits forwarding of messages delivered from DMs.

模板参数
N/A
参数
[in]N/A
[out]N/A
[in,out]N/A
返回
N/A
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

在文件 第 行定义.

◆ TransmitCertificate()

virtual ara::core::Future<OperationOutput> ara::diag::Authentication::TransmitCertificate ( uint16_t  CertificateEvaluationId,
ByteSpan  CertificateData
)
pure virtual

This SubFunction parameter transmits the certificate independently or after a previous authentication.

模板参数
N/A
参数
[in]CertificateEvaluationIdProviding a different certificateEvaluationId allows the server to identify the certificate.
[in]CertificateDataThe certificate to verify.
[out]ara::core::Future<OperationOutput>
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

◆ VerifyCertificateBidirectional()

virtual ara::core::Future<OperationOutput> ara::diag::Authentication::VerifyCertificateBidirectional ( uint8_t  CommunicationConfiguration,
ByteSpan  ClientCertificate,
ByteSpan  ClientChallenge
)
pure virtual

Initiate authentication by validating the certificate and generating proof of ownership from the server.

模板参数
N/A
参数
[in]CommunicationConfigurationConfiguration information on how to proceed with secure authentication after further diagnostic communications.
[in]ClientCertificateCertificate received from the tester during one-way certification.
[in]ClientChallengeThis parameter provides the challenge Client received from the tester during one-way authentication. This parameter depends on the communication configuration used and may be empty.
[out]ara::core::Future<OperationOutput>
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

◆ VerifyCertificateUnidirectional()

virtual ara::core::Future<OperationOutput> ara::diag::Authentication::VerifyCertificateUnidirectional ( uint8_t  CommunicationConfiguration,
ByteSpan  ClientCertificate,
ByteSpan  ClientChallenge
)
pure virtual

Authenticate by validating certificates.

模板参数
N/A
参数
[in]CommunicationConfigurationConfiguration information on how to proceed with secure authentication after further diagnostic communications.
[in]ClientCertificateCertificate received from the tester during one-way certification.
[in]ClientChallengeThis parameter provides the challenge Client received from the tester during one-way authentication. This parameter depends on the communication configuration used and may be empty.
[out]ara::core::Future<OperationOutput>
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara

◆ VerifyOwnership()

virtual ara::core::Future<OperationOutput> ara::diag::Authentication::VerifyOwnership ( ByteSpan  ClientPOWN,
ByteSpan  ClientEphemeralPublicKey
)
pure virtual

Initiate authentication by validating the certificate.

模板参数
N/A
参数
[in]ClientPOWNProof of ownership provided by the tester to the challengeServer previously exchanged.
[in]ClientEphemeralPublicKeyTemporary public key, may be empty.
[out]ara::core::Future<OperationOutput>
[in,out]N/A
返回
ara::core::Future<OperationOutput>
注解
N/A
异常
N/A
Swsid
N/A
符合标准
no
非标原因
N/A
种类
function
可见
public
线程安全
N/A
Fireandforget
N/A
错误
N/A
头文件
ara/diag/Authentication.h
异常安全
N/A
分类
ara
